ICE X7 2D + Flasher Bundle
Item #
412260-1
$1,299.99
WARNING: Important information for California residents.
Overview
The Minn Kota™ ICE X7 2D Bundle, powered by Humminbird Imaging®, is built for ice anglers who want to make every hole you punch count. Dual Spectrum CHIRP Sonar lets you see fish, bait, and structure in greater detail at extended depth. Built-in precision mapping from Minn Kota™ Maps delivers unmatched accuracy, including up to 1-ft contours. Plus, a high-resolution touchscreen means you see clearly no matter the weather, even in bright sun. ICE Mode includes preloaded features and functionality created specifically for the ice. ICE X7 is designed to be used as a stand-alone fish finder on the ice, but can be flipped to Open Water Mode whenever it's time to move to a boat (open water transducer and accessories sold separately).
FEATURES
- Powered by Humminbird Imaging™
- Stay on the fish with sonar built on Humminbird’s industry-leading performance, delivering the clarity and detail you need to fish with confidence.
- Dual Spectrum CHIRP Sonar
- See fish, bait, and structure in greater detail at extended depth with precise target separation up to ¾''.
- Minn Kota™ Maps Included
- Zero in on where the fish are—even down to 1ft. countour accuracy. Navigate over 13,000 inland lakes and coastal waterways in the United States and Canada safely and with confidence. Tools like 1 ft. contours and depth and shallow water highlights help you traverse waters with certainty.
- CHIRP Interference Rejection
- Keep your screen easy to read with reduced sonar interference from other anglers in busy fishing environments.
- Best-in-Class Clarity and Brightness
- Don't miss a single detail when you're on the ice. See the sharpest images on your high-resolution touchscreen even in snow, rain, high sun, or when wearing polarized lenses.
- Advanced Waypoint Management
- Plan your trip before you get on the ice. Sync with the Minn Kota® Fishing App to scout, group, sort, and edit waypoints on and off the water with ease.
- Optimized for the Ice
- Fish with the confidence of knowing your fish finder is built for the ice. ICE Mode delivers a custom ice experience with hassle-free setup and streamlined features. When the ice melts and it's time to move your X7 to your boat, simply flip back to Open Water Mode for use all year round.
- Portable Shuttle with Protective Zip Bag
- Includes a shuttle and a durable protective zip bag, so you can safely transport your unit on and off the ice with ease.
- Ready at Every Touch
- Instant response from your touchscreen, even in wet conditions.
- Compatible with Live Sonar
- Watch fish move, react, and strike your lure with the clarity of Live Sonar in Forward, Down, or Landscape Mode. (sold separately)
- One Seamless Fishing System
- Minn Kota® trolling motors, fish finders, maps, sonar, and shallow water anchors all work together for one purpose—fishing. The Minn Kota system seamlessly integrates what your fish finder sees with what your trolling motor does, turning sonar and mapping data into automated and precise boat positioning so you can stay focused on fishing.
- Wireless Connectivity
- From innovative navigation features to precise boat positioning, built-in connectivity let’s you wirelessly manage compatible gear seamlessly across your Minn Kota® system. Simplify the set up and use of your integrated system without complex rigging or cables—keeping everything connected, cleaner, and more organized.
- Simplified Software Updates
- Warranty
SPECS
| General | |
| Model | ICE X7 2D + Flasher Bundle |
| Series | ICE |
| Compatible With | MEGA Live, MEGA Live 2, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota Talon/Raptor, Minn Kota US2 Sonar, Minn Kota i-Pilot Link, NMEA 2000, One-Boat Network, Radar |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 10.689 in W x 6.574 in H x 3.177 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 9.365 in W x 5.523 in H x 2.25 in D |
| Battery Included | 12V 9 Amp Hours |
| Upgradable Software | Yes |
| As shown MSRP |
$1,299.99
|
| UPC | 0082324062179 |
| Product Code | 412260-1 |
| Warranty | Three-Year Warranty with Registration |
| Display | |
| Display Size - Diagonal | 7 in |
| Display Pixel Matrix | 1024H x 600V |
| Display Type | Color TFT |
| Display Colors Grayscale | 24-Bit |
| HDMI Compatible | No |
| Sonar | |
| Transducer Included | XNT 14 HW CMSI 150 T |
| Transducer Mount Location | Portable |
| Sonar-Standard | Dual Spectrum CHIRP, MEGA Side Imaging+ |
| Sonar-Coverage | 20°, 42°, 60° & (2) 86° @ -10dB |
| Sonar-Optional | 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low |
| CHIRP - Frequencies Supported | Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
| Depth-Sonar | 3,500 ft (optional Airmar CHIRP), 600 ft (standard transducer) |
| CHIRP - Imaging-Frequencies Supported | 455 kHz (440-500 kHz), MEGA (1075-1150 kHz) |
| Depth-Down Imaging | 200 ft (455 kHz), 75 ft (MEGA) |
| Range-Side Imaging (Side-To-Side) | 400 ft (MEGA), 800 ft (455 kHz) |
| Interface | Touch Screen, Keypad Control (Cross Touch®) |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 10,000, 50, 50/20,000 |
| NMEA2000 | Included |
| Target Separation | 3/4 in |
| Interference Rejection | 6 Modes |
| Noise Rejection | 6 Steps |
| Gain | 20 Steps |
| Custom Digital Readout | Yes |
| Custom View Selections | Yes |
| Speed | Included |
| Temperature | Optional |
| Temperature Alarm | Yes |
| Temperature Graph | No |
| Technical Details | |
| Memory Card Slot | Dual Micro SD |
| Power Draw | 1.5 Amps |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Radar Compatibility | Yes |
| 5-Port Ethernet Switch Compatibility | Yes |
| AIS Compatibility | Optional |
| Autopilot Compatibility | Yes |
| Heading Sensor GPS Compatibility | No |
| View Preset Keys | Yes |
| X-Press Menu System | Yes |
WHAT'S IN THE BOX
X7 DSC Ice Control Head
X7 DSC Ice Shuttle
2D Ice Transducer
10 ft Fish Finder Power Cable
9ah AGM battery with charger
Knobs
Mounting Bracket
RESOURCES & SUPPORT
TAKE A CLOSER LOOK
Click to explore features
WHY YOU'LL LOVE IT
FIND FISH WITH CONFIDENCE
See what's under the ice with industry-leading sonar powered by Humminbird Imaging, delivering exceptional clarity and detail to help you locate fish, understand structure, and fish more effectively.
HOLE HOP WITH EASE
With detailed maps and advanced waypoint management, spend less time looking for fish and more time catching them.
BUILT FOR EVERY CONDITION
See crisp detail in bright sun and while wearing polarized sunglasses. High-resolution displays deliver exceptional visibility whenever you're on the ice.

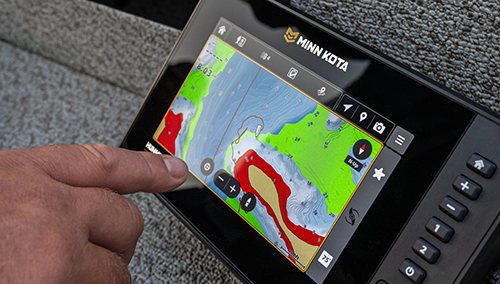

FISHING TECHNOLOGY THAT WORKS TOGETHER
When it's time for open water, Minn Kota X Series becomes the brains of your boat, seamlessly bringing your trolling motor, sonar, maps, and shallow water anchors together in one easy-to-use interface.
